6 Passengers DOULIKE 130HP Mini Dump Truck 4x4 Tipper Truck YC4D130-33 Diesel Engine 5 Speed Euro 3 4 6L

Product Categories

Ricalt Automobile Technology (Hubei) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

6 Passengers DOULIKE 130HP Mini Dump Truck 4x4 Tipper Truck YC4D130-33 Diesel Engine 5 Speed Euro 3 4 6L

Name: 6 Passengers DOULIKE 130HP Mini Dump Truck 4x4 Tipper Truck YC4D13033 Diesel Engine 5 Speed Euro 3 4 6L
Brand: Dongfeng
Price: 19 USD

China 6 Passengers DOULIKE 130HP Mini Dump Truck 4x4 Tipper Truck YC4D130-33 Diesel Engine 5 Speed Euro 3 4 6L factory

Condition : New

Steering : Left

Horsepower : 150 - 250hp

Emission Standard : Euro 3

Brand Name : Dongfeng

Place of Origin : Hubei, China

Segement : Mini truck

Market Segement : Mining transportation

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Transmission Type : Manual

Forward Shift Number : Other

Maximum Torque(Nm) : 1500-2000Nm

Dimensions (L x W x H) (mm) : 6530x2300x2950 mm

Cargo Tank Dimension : Custom

Cargo Tank length : 6.2-8m

Gross Vehicle Weight : 18000

Capacity (Load) : 1 - 10t

Drive Wheel : 4x4

Passengers : 6

Rear Camera : Camera

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : Yes

Touch Screen : Yes

After-sales Service Provided : Other

Product name : Dongfeng 4x4 dumper truck

Fuel : Diesel

Engine model : YC4D130-33 Diesel Engine

Color : Optional

Max speed : 90 Km/h

Driving type : 4*4 Left Hand Driving

Key words : 6ton MiniTipper Truck

Loading capacity : 1-10ton

Tire : 9.00-20

Transmission : 5 speed, Manuel

Price : $19,550.00/units 1-2 units

Contact Now

Welcome To YIZHUAN Special Auto

6 Passengers DOULIKE 130HP Mini Dump Truck 4x4 Tipper Truck YC4D130-33 Diesel Engine 5 Speed Euro 3 4 6L

Welcome to Hubei YIZHUAN Special Auto CO., LTD

Dear Friend, having a nice day, thanks for your browsing on our website, i am so glad to write you. We are a professional Special Auto manufacturer and supplier with having rich experiences and professional manufacturing teams, workshops, equipment and tech teams.Have cooperation with HOWO, ISUZU, SINO TRUK, Dongfeng and so on Vehicle brands several years.

Mainly produce Fuel Tank Truck, LED advertising truck, Wrecker truck, Road sweeper, Water truck, Refrigerated truck, Garbage truck, LPG tanks, Concrete mixer truck, Cargo truck, Dump truck, Van truck, Truck mounted crane, Aerial work platform truck, Tractor truck, Semi-trailer, Bulk cement truck, Sewage suction truck, Fecal suction truck, and so on Special vehicles more than 200 kinds. Our prices are very competitive.

Welcome to consult and inquiries!

Product Description

New DOULIKE 130HP Mini Dump Truck 6Ton Tipper Truck 4x4 Driving No Used Dump Truck Price

A dump truck, known also as a dumper truck or tipper truck, is used for taking dumps (such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper lorry (UK, India), tip-truck, tip-trailer, tipper truck, or tipper (Australia and New Zealand).

Today, virtually all dump trucks operate by hydraulics and they come in a variety of configurations each designed to accomplish a specific task in the construction material supply chain.

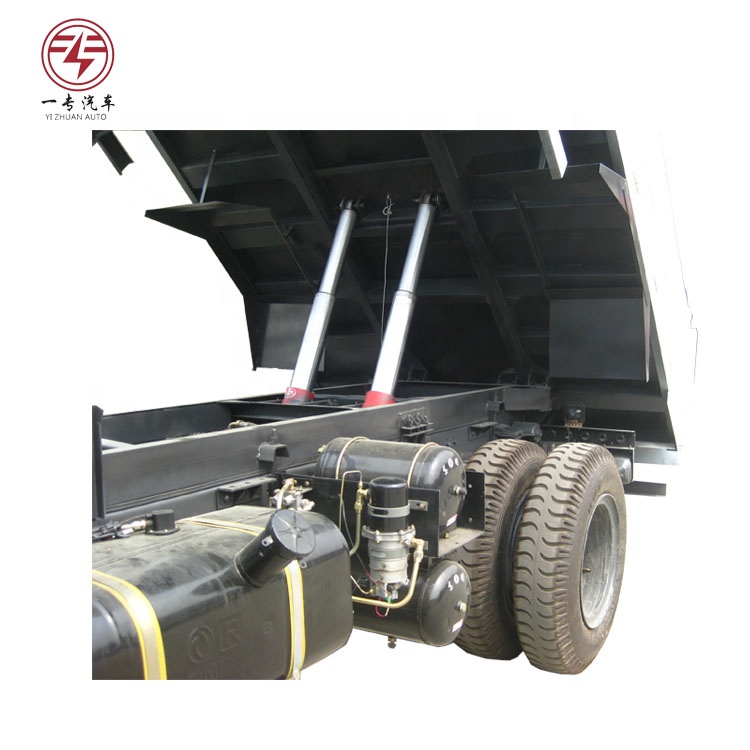

A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a vertical hydraulic ram mounted under the front of the body, or a horizontal hydraulic ram and lever arrangement between the frame rails, and the back of the bed is hinged at the back of the truck. The tailgate can be configured to swing up on top hinges (and sometimes also to fold down on lower hinges) or it can be configured in the "High Lift Tailgate" format wherein pneumatic rams lift the gate open and up above the dump body.

SPECIFICATION
Model
Dimension & Weight			..	Colour
Overall dimension	Length (mm)	6530
	Fabric	Width (mm)	2300
	Size	Height (mm)	2950
Cargo box size	Length (mm)	4200
		Width (mm)	2200
		Height (mm)	800
Wheelbase (mm)			3650
Total weight (kg)			9500
Tare weight (kg)			3360
Payload (kg)			6200
Engine
Engine Model			YC4D130, YUCHAI ENGINE
Engine Type			4 cylinder in-line, Water, cooled, turbocharge
Fuel Type			Diesel
Engine Power (kW/HP)			96/130
Related Speed (rpm)			2800
Max torque (N.m/rpm)			420/1400-1800
Displacement (L)			4.214
Fuel consumption (L/100km)			10
Emission			Euro 3
Bore x stroke (mm)			108x115
Minimum fuel consumption rate at full load			205g/kW.h
Chassis system
Transmission			5 speed, Manuel
Suspension Type			Leaf spring
Clutch			430mm single sheet dry-type clutch
Steering			Power steering
Tyre			9.00-20

More Tech Spec, pls check the supplier!

Detailed Images

Cab Introduction ---Flat head cab

The length and wheelbase of the bus are short, which can reduce the tare weight of bus and improve maneuverability. Broad vision. The flat-top cab has gradually become the mainstream of truck cabs.

The structure of the cab mainly includes: the hollow shell of the cab, doors, windows, interior and exterior trim parts, workbenches and body accessories, seats, and ventilation, heating, air conditioning, and air conditioning devices.

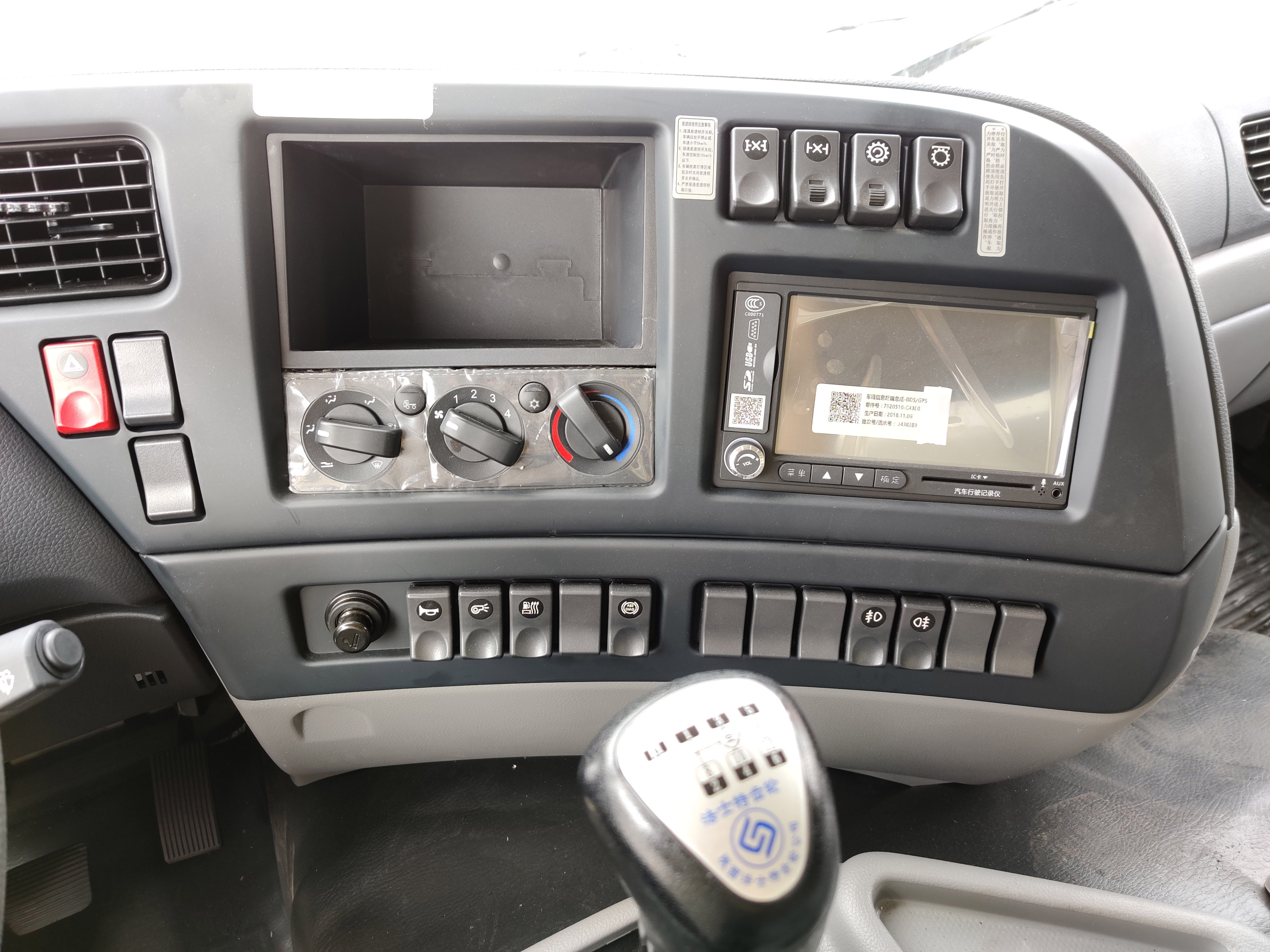

Steering Wheel

Dongfeng 5-speed DF6S900 transmission

Dump truck maintenance skills

1. Check the protective coating on the underbody 2. Replace the fuel filter and spark plug in time 3. Check the V-ribbed belt and replace it if necessary. 4. Check whether the engine timing belt is cracked or damaged, and replace it if necessary. 5. Check whether the engine oil pan bolts are loose and tighten them according to the specified torque if necessary.

6. Regularly check whether the brake hose is aging or damaged, whether the brake hard tube is damaged or corroded, and whether the
connections are leaking. 7. Regularly check whether the connections of the fuel system are aging, damaged, loose or worn. 8. Check
whether the rubber parts and rubber bearings connecting the front and rear frames to the body are damaged and whether they are
permanently deformed. 9. Regularly check the left and right control arm hinges and rear axle hinges for damage or failure.

Transfer dump truck

Another configuration is called a triple transfer train, consisting of a "B" and "C" box. These are common on Nevada and Utah Highways, but not in California. Depending on the axle arrangement, a triple transfer can haul up to 129,000 kilograms (284,000 pounds) with a special permit in certain some place.

The second aggregate container on the trailer ("B" box), is powered by an electric motor, a pneumatic motor or a hydraulic line. It rolls on small wheels, riding on rails from the trailer's frame into the empty main dump container ("A" box). This maximizes payload capacity without sacrificing the maneuverability of the standard dump truck. Transfer dump trucks are typically seen in some area due to the peculiar weight restrictions on highways there.

Most standard dump trucks have one front steering axle and one (4x2 4-wheeler)) or two (6x4 6-wheeler) rear axles which typically have dual wheels on each side. Tandem rear axles are almost always powered, front steering axles are also sometimes powered (4x4, 6x6). Unpowered axles are sometimes used to support extra weight. Most unpowered rear axles can be raised off the ground to minimize wear when the truck is empty or lightly loaded, and are commonly called "lift axles". European Union heavy trucks often have two steering axles. Dump truck configurations are two, three and four axles. The four-axle eight wheeler has two steering axles at the front and two powered axles at the rear and is limited to 32 metric tons (35 short tons; 31 long tons) gross weight in most EU countries. The largest of the standard European dump trucks is commonly called a "centipede" and has seven axles. The front axle is the steering axle, the rear two axles are powered, and the remaining four are lift axles. The shorter wheelbase of a standard dump truck often makes it more maneuverable than the higher capacity semi-trailer dump trucks.

Our Services & Strength

Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification). Yizhuan series trucks have occupied the interior market for many years and have procured remarkable achievements. Our survival is based on the quality. Credit standing is the guarantee of our success. We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life. What's more, the service can be dealt with in 48 hours. Hubei Yizhuan Special Automobile is willing to serve for you, and is looking forward to your coming to visit our company.

Our main business:
1.Refitting special purpose vehicles.
2.Producing and distributing chassis, including CLW, DONGFENG, FOTON, SINO-TRUK, FAW, JAC, JMC, IVECO, and I S U Z U, and etc.

Our leading productions:
1. Water truck
2. Sewage suction truck
3. Garbage truck
4. Road sweeper truck
5. Fuel tank truck
6. High-altitude operation truck
7. Off Road Vehicles
8. Dump truck
9. Mobile advertisement truck
10. Concrete mixer truck
11. Wrecker truck
12. Refrigerator Truck
13. Aerial operation truck
14. Box truck
15. Bus
16. Mobile kichen truck
And etc, totally more than 300 types special purpose vehicles.

FAQ

1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Shiyan city, the production base of Chinese special purpose vehicles.

2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
